BL型棒销联轴器

BL型棒销联轴器

产品分类:

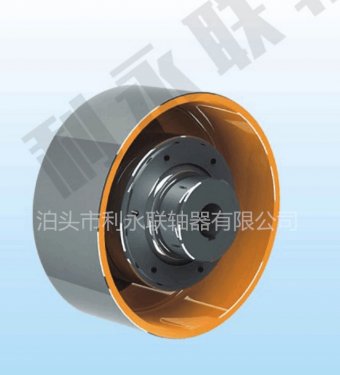

产品简介: BL棒销 联轴器 的适用范围 适用于联接两同轴线的传动轴系,具有 的补偿两轴相对偏移和一般 性能。工作环境温度为-20º~+70ºC.不适用于对 效果要求很高和对噪音需要控制的部位。 BL型弹性棒销齿式......
订购热线:  15128789423


BL棒销联轴器的适用范围

适用于联接两同轴线的传动轴系,具有   的补偿两轴相对偏移和一般 性能。工作环境温度为-20º~+70ºC.不适用于对 效果要求很高和对噪音需要控制的部位。



BL型弹性棒销齿式联轴器基本参数和主要尺寸   mm
型号公称扭矩 N.m许用 转速 rpm孔径直径mm d1、d2轴孔长度mmDS B许用补偿量转动 惯量 N.m2


质量kg
Y型J1型轴向径向角向
LLmm(º)
BL1610380025,285565145566±1.50.20º30¹0.88211
30,32,35,386080
40,42,45,4870110
BL21500300040,42,45,48,50,5570-110110165576±1.50.20º30¹1.9618
60110-140140
BL33920240050,5570-110110190586±1.50.30º30¹4.31230
60,65,70,75110-140140
80125-170170
BL46174200060,65,70,75110-1401402305106±1.50.30º30¹9.70242
80,85,90125-170170
BL59800168070,75110-1401402705116±1.50.40º30¹23.5281
80,85,90,95110-200180
100,110,120172210
BL615680150080,85,90,95120-17017029010127±2.50.40º30¹31.36101
100,110,120160-210210
130200-250250
BL724500127090、95140-17017035010147±2.50.40º30¹79.38151
100,110,120160-210210
130,140,150200-250250
BL8308701140100,110,120160-21021037010167±2.50.60º30¹123.52206
130,140,150200-250250
160,170240-300300
BL9392001000110,120160-21021040010167±2.50.60º30¹175.42290
130,140,150200-250250
160,170,180240-300300
BL1061740850130,140,150200-25025047010177±2.50.60º30¹343377
160,170,180240-300300
190,200,210280-350350
BL1198000750150200-25025052010201±2.50.80º30¹597.8520
160,170,180240-300300
190,200,210,220,230, 240,250280-350350
BL12122500660170,180240-30030056010231±2.50.80º30¹989.8660
190,200,210,220,230, 240,250280-350350
260,270,280320-420-
BL13155800600190,200,210,220,230, 240,250280-35035063010261±2.51.00º30¹1630.6876
260,270,280,290,300320-420-
BL14245000540210,220,230,240,250 260,270280-35035069010285±2.51.00º30¹2675.41124
280,290,300,310,320,330,340350-420-
BL15308700480230,240,250,260,270 280,290,300320-350-75010315±2.51.20º30¹44101830
310,320,330,340 350,360,370,380420-480
BL16392000425250,260,270,280,290,300,310,320,330,340350-400-85015345±5  1.20º30¹7408.82370
350,360,370,380 390,400,410,420420-480
BL17617400380280,290,300,310,320 330,340,350,360,370 380,390,400400-450-93015369±51.50º30¹12475.43350
410,420,430,440,450 460,470,480480-560
BL18980000330300,310,320,330,340 350,360,370,380,390 400450-480-100015389±51.50º30¹201394077
410,420,430,440,450 460,470,480,490,500 580530-560
BL191568000300350,360,370,380,390 400,410,420,430,440480-560-111015409±51.50º30¹40062.45690
450,460,470,480,490 500,530,560,600600-650



联系我们



泊头市利永联轴器有限公司

电话:15128789423

网址:http://www.hblzqc.com

地址:河北省泊头市工业开发区

  全国服务热线:



  0317-8309802
